MAX20098ATED/VY+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- Description36V >10A 5UA BUCK CONT
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 3,005,956
Can ship immediately
Pricing:
- 1$2.34
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 42V
- Frequency - Switching:220kHz ~ 2.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Power Good
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

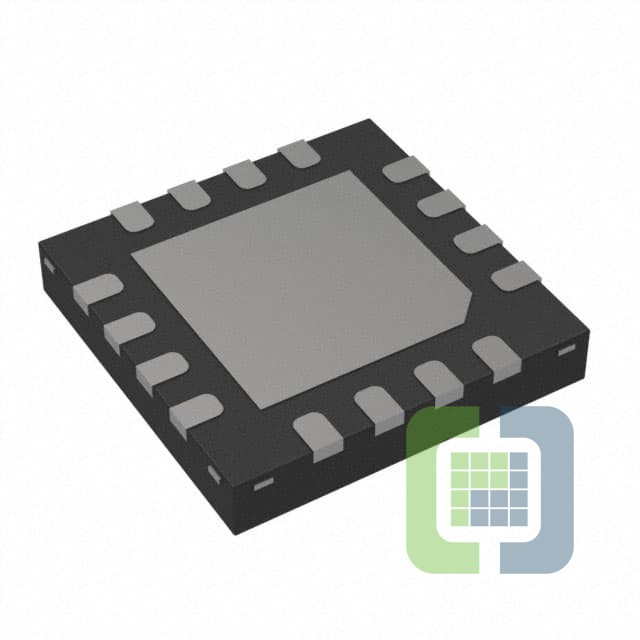

- Package / Case:16-WFQFN Exposed Pad
- Supplier Device Package:16-TQFN-EP (3x3)
