UC3827N-1G4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 223
Can ship immediately
Pricing:
- 1$5.36
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Full-Bridge, Push-Pull
- Number of Outputs:3
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.6V ~ 20V
- Frequency - Switching:220kHz
- Duty Cycle (Max):91%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Frequency Control, Ramp, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole

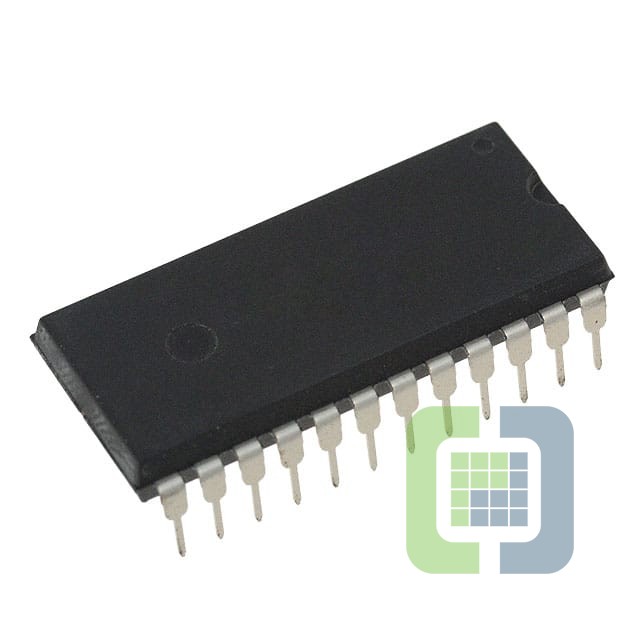

- Package / Case:24-DIP (0.600", 15.24mm)
- Supplier Device Package:24-PDIP
