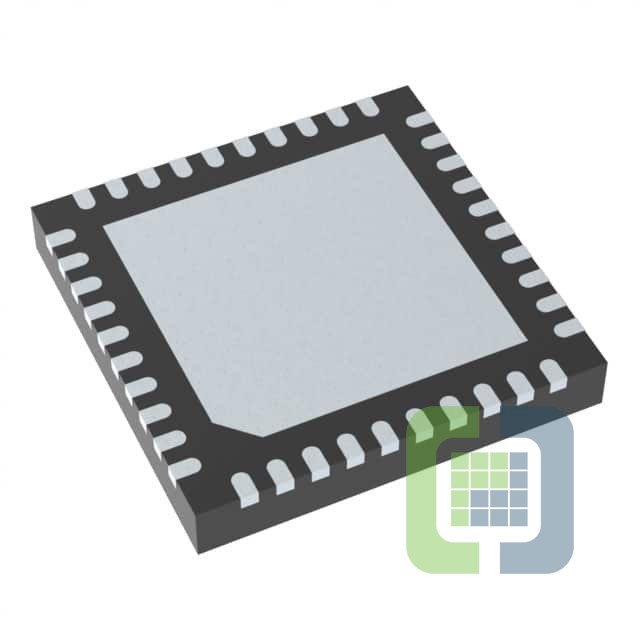

LT8603JUJ#WPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description42V, L IQ, 4X OUT 3X MONO BUCK C
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$9.31
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:4
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3V ~ 42V
- Frequency - Switching:250kHz ~ 2.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Power Good, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:40-WFQFN Exposed Pad
- Supplier Device Package:40-QFN (6x6)
