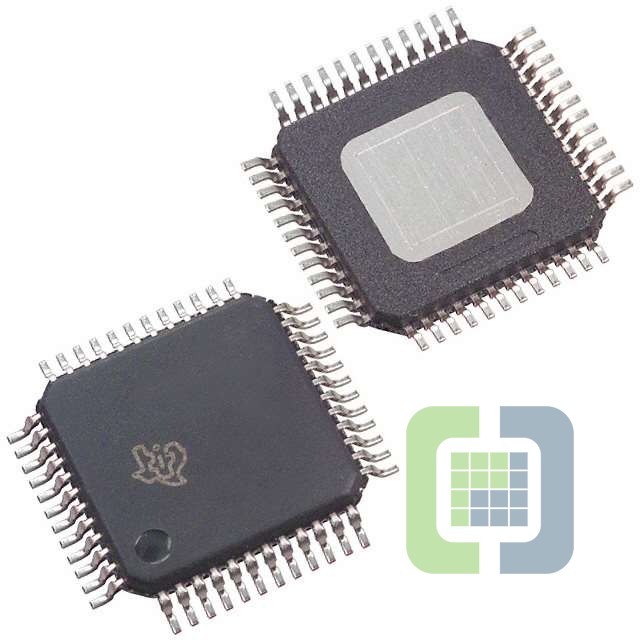

LM5170QPHPTQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionBI DIRECTIONAL 48V TO 12V CURREN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 210
Can ship immediately
Pricing:
- 1$12.9
- 250$8.98072
- 500$8.4013
- 1,250$7.70602
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3.5V ~ 42V
- Frequency - Switching:100kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:48-PowerTQFP
- Supplier Device Package:48-HTQFP (7x7)
