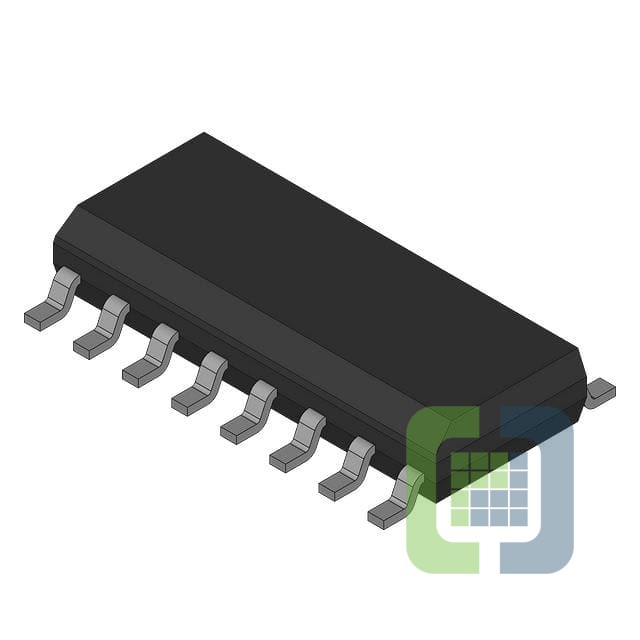

UCC3580D-1G4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC3580 - SINGLE-ENDED ACTIVE CL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 181
Can ship immediately
Pricing:
- 1$2.28
- 160$2.28
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.5V ~ 16V
- Frequency - Switching:400kHz
- Duty Cycle (Max):66%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Ramp, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
