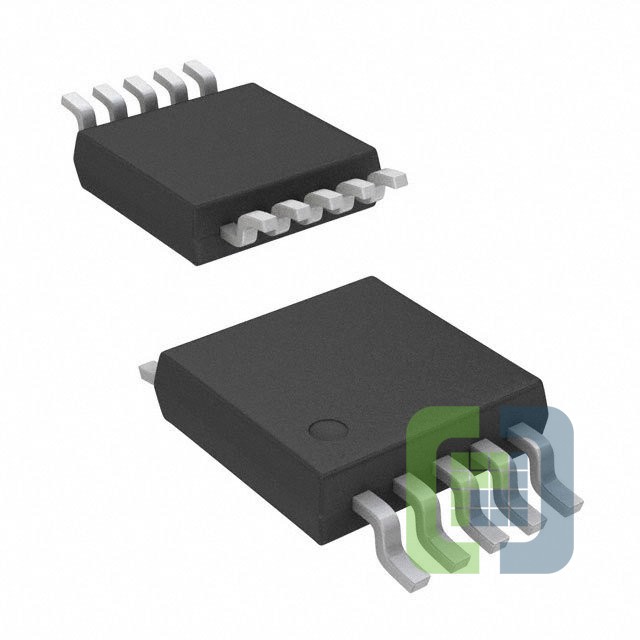

LM3481QMM/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOP 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$2.02
- 1,000$0.9375
- 2,000$0.87285
- 5,000$0.84052
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.97V ~ 48V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-VSSOP
