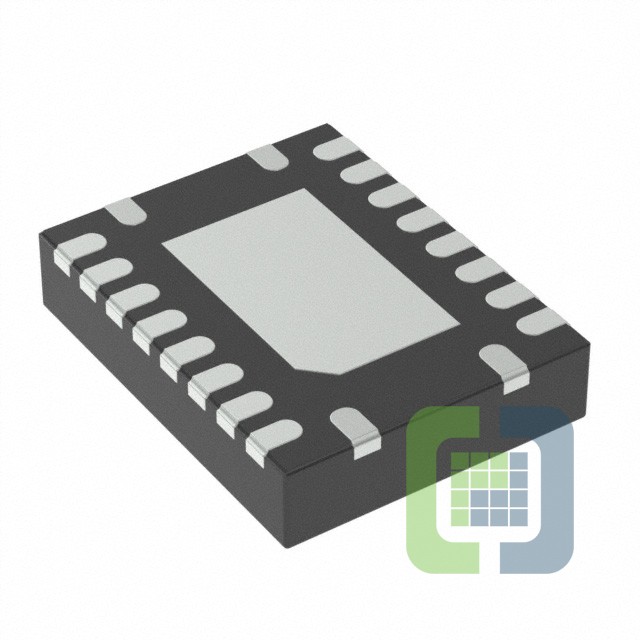

LM5145RGYT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- Description100V SYNCHRONOUS BUCK WIDE VIN C
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$3.39
- 250$3.39
- 500$3.04184
- 1,250$2.56541
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):6V ~ 75V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount, Wettable Flank
- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-VQFN (3.5x4.5)
