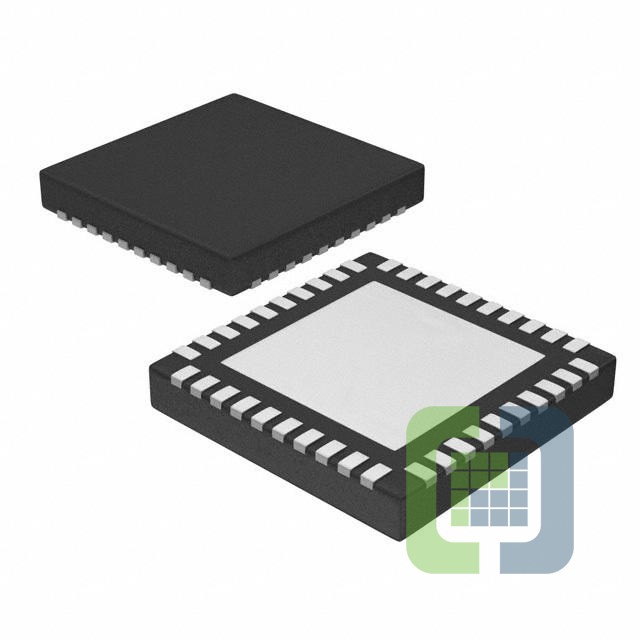

TPS40422RHAR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK PMBUS 40VQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$5.31
- 2,500$2.51636
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 20V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:PMBus
- Control Features:Frequency Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-VQFN (6x6)
