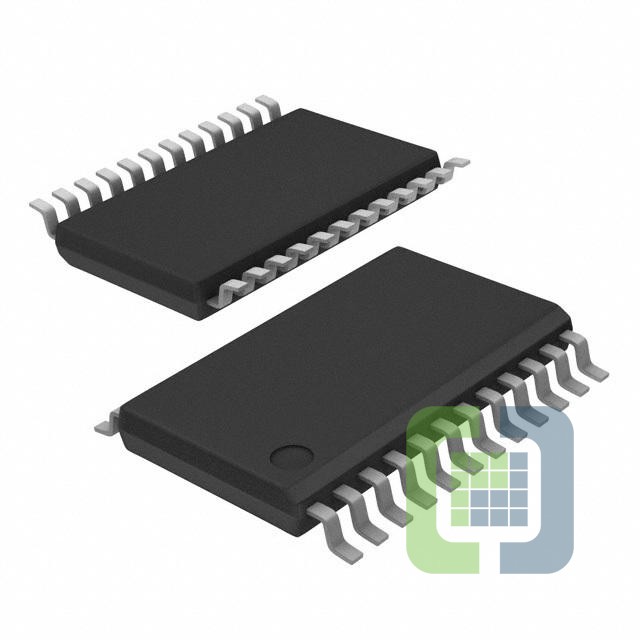

UCC28950PWR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FULL-BRIDGE 24TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$6.18
- 2,000$3.6036
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Full-Bridge
- Number of Outputs:6
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 17V
- Frequency - Switching:50kHz ~ 1MHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Dead Time Control, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
