LM5143QRWGRQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC POWER MANAGEMENT
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$6.75
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3.5V ~ 65V
- Frequency - Switching:100kHz ~ 2.2MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Dead Time Control, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

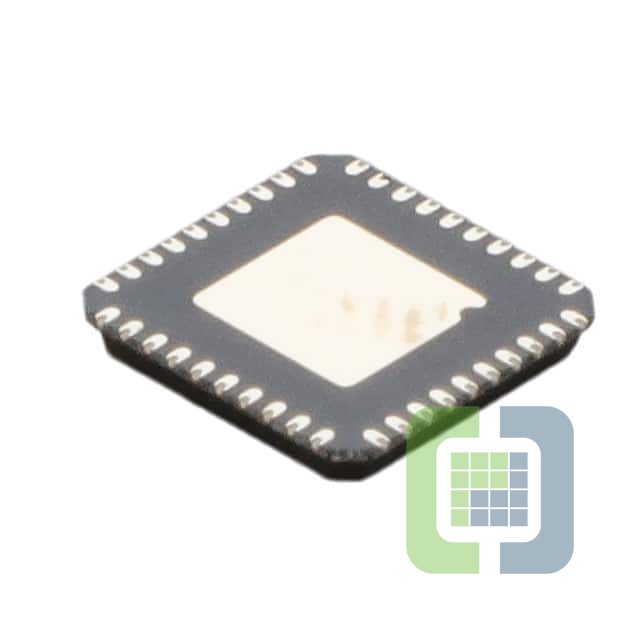

- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-VQFNP (6x6)
