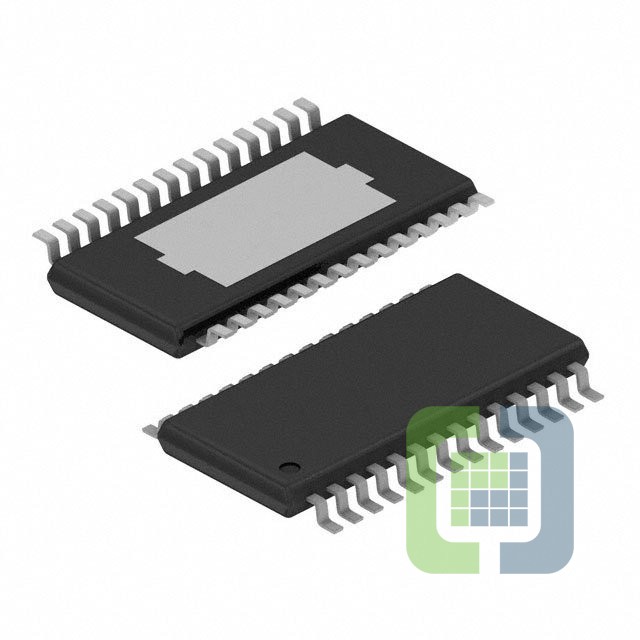

LM5176PWPT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- Description.5-55VIN 4 SWITCH BUCK-BOOST CON
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 746
Can ship immediately
Pricing:
- 1$7.66
- 250$5.1612
- 500$4.7058
- 1,250$4.0986
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.2V ~ 55V
- Frequency - Switching:100kHz ~ 600kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:28-HTSSOP
