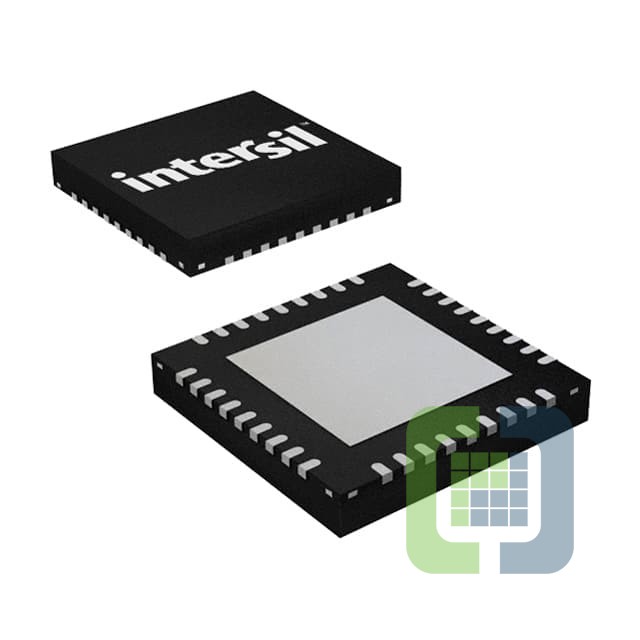

ZL6105ALAF
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK PMBUS 36QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ZL6105ALAF Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$8.05
- 10$7.26724
- 50$6.92923
- 100$6.0166
- 250$5.74619
- 500$5.23917
- 1,000$4.56315
- 2,500$4.39414
Quote It
Technical Details
- Series:Digital-DC™
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 5V
- Frequency - Switching:200kHz ~ 1.4MHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:I²C, PMBus, SMBus
- Control Features:Current Limit, Enable, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:36-VFQFN Exposed Pad
- Supplier Device Package:36-QFN (6x6)
