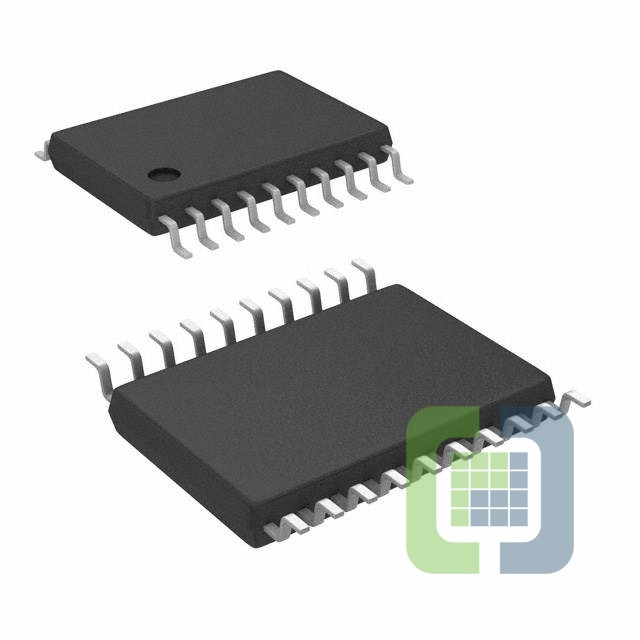

NCP5425DBG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL SWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP5425DBG Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$0.88
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4V ~ 16V
- Frequency - Switching:150kHz ~ 750kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-TSSOP
