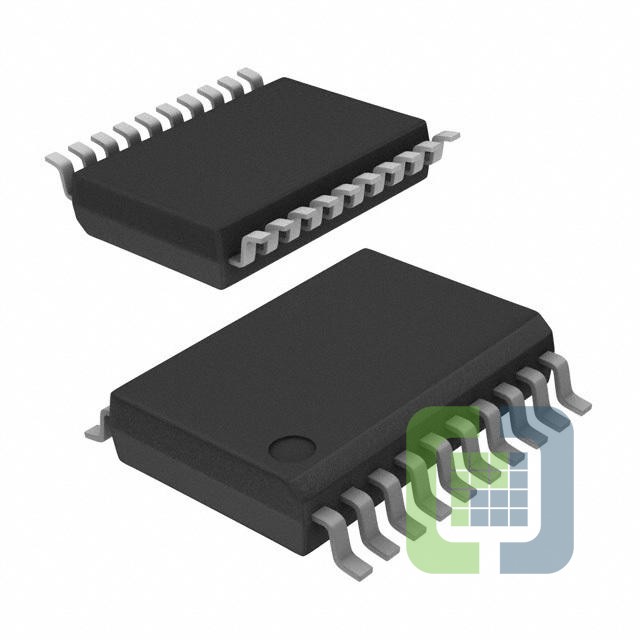

BD9846FV-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BD9846FV-E2 Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
- 1$1.875
- 2,500$1.875
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.6V ~ 35V
- Frequency - Switching:100kHz ~ 1.5MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Dead Time Control, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 105°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-LSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-SSOP-B
