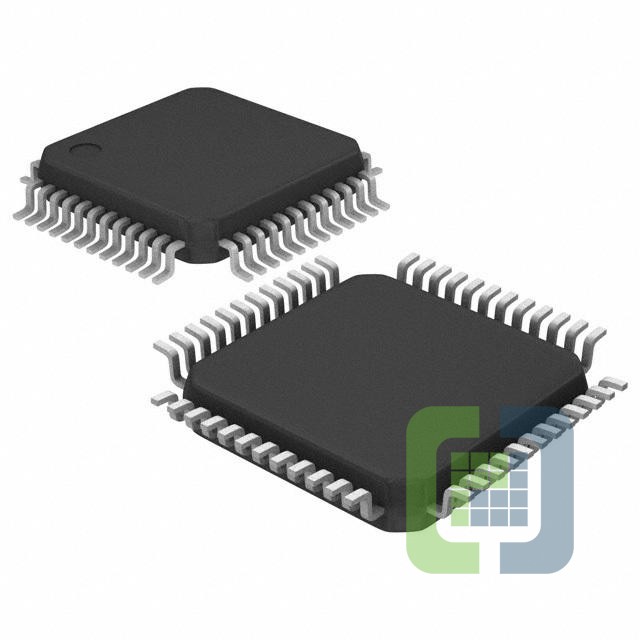

BD9013KV-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 48VQFP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BD9013KV-E2 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$3
- 1,500$2.97915
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 30V
- Frequency - Switching:250kHz ~ 550kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:48-LQFP
- Supplier Device Package:48-VQFPC (7x7)
