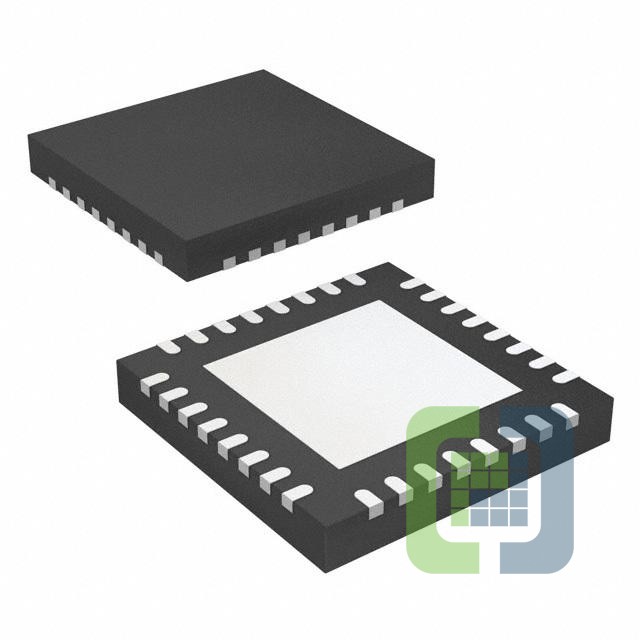

LM25119PSQX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 32WQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
- 1$6.43
- 4,500$3.04304
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 42V
- Frequency - Switching:50kHz ~ 750kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Ramp, Reset, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:32-WFQFN Exposed Pad
- Supplier Device Package:32-WQFN (5x5)
