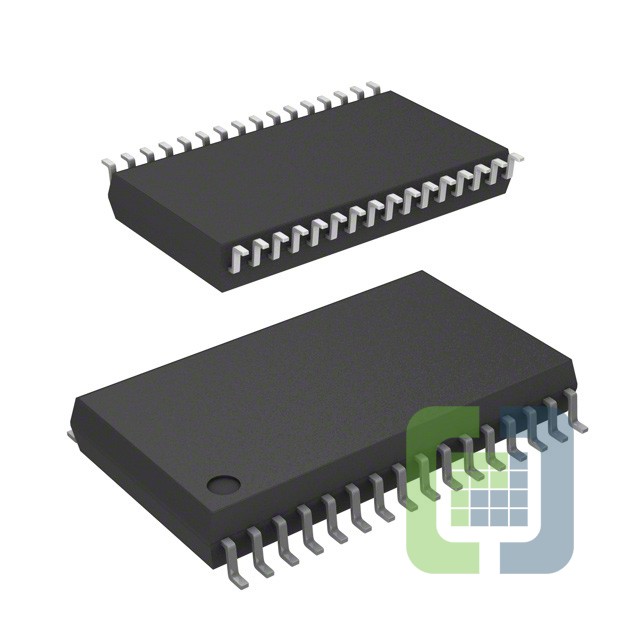

CS5301GDWR32
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$4.08
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:3
- Output Phases:3
- Voltage - Supply (Vcc/Vdd):4.3V ~ 20V
- Frequency - Switching:250kHz ~ 800kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Power Good
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:32-SO
