ISL81401FRZ
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description40V 4-SW SYNCH BUCK-BOOST PWM
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$5.9
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:90kHz ~ 650kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Power Good
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount

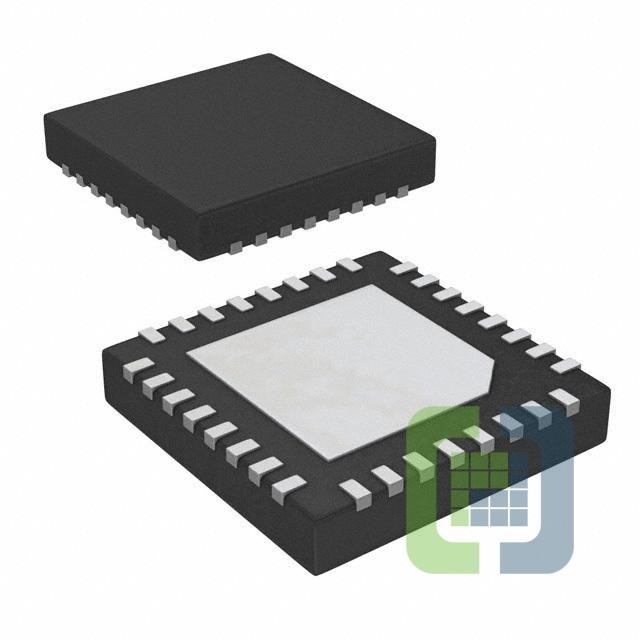

- Package / Case:32-VFQFN Exposed Pad
- Supplier Device Package:32-QFN (5x5)
