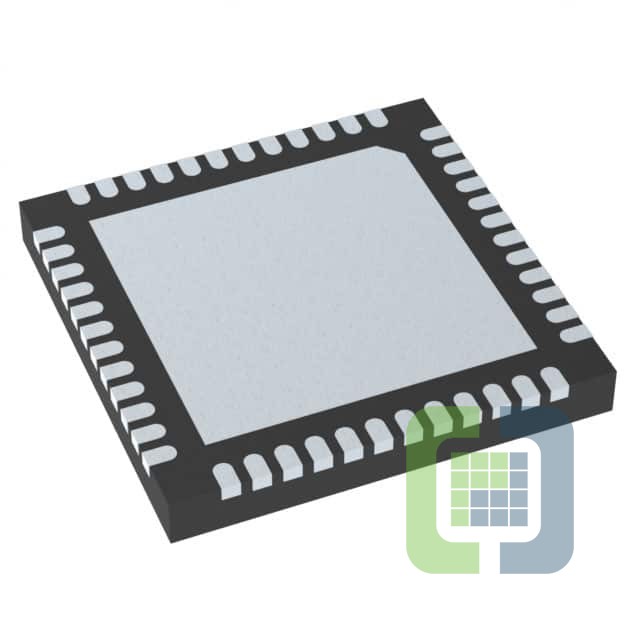

TPS536C7B1RSLT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL-CHANNEL D-CAP+, PMBU
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$12.67
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:12
- Output Phases:12
- Voltage - Supply (Vcc/Vdd):4.5V ~ 18V
- Frequency - Switching:300kHz ~ 2MHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:PMBus
- Control Features:Current Limit, Enable, Frequency Control, Phase Control, Ramp
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:48-VFQFN Exposed Pad
- Supplier Device Package:48-VQFN (6x6)
