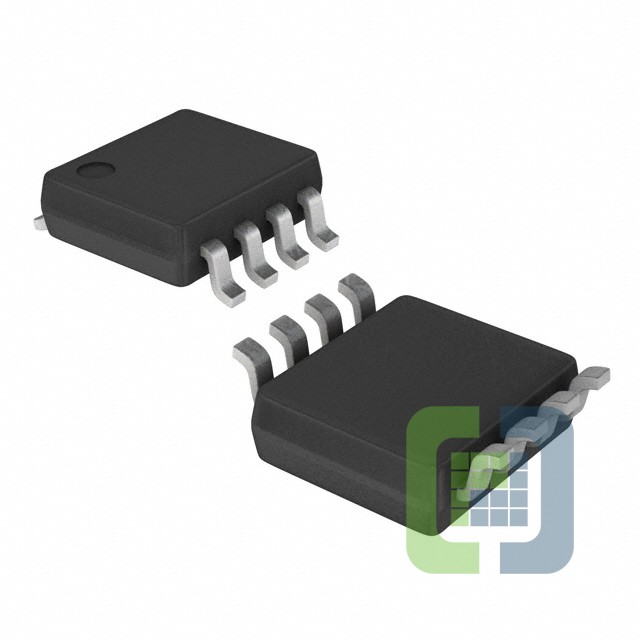

LM5085MMX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 8VSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$1.03074
- 3,500$1.0098
- 7,000$0.9724
- 10,500$0.935
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 75V
- Frequency - Switching:Up to 1MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, On Time Control
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-VSSOP
