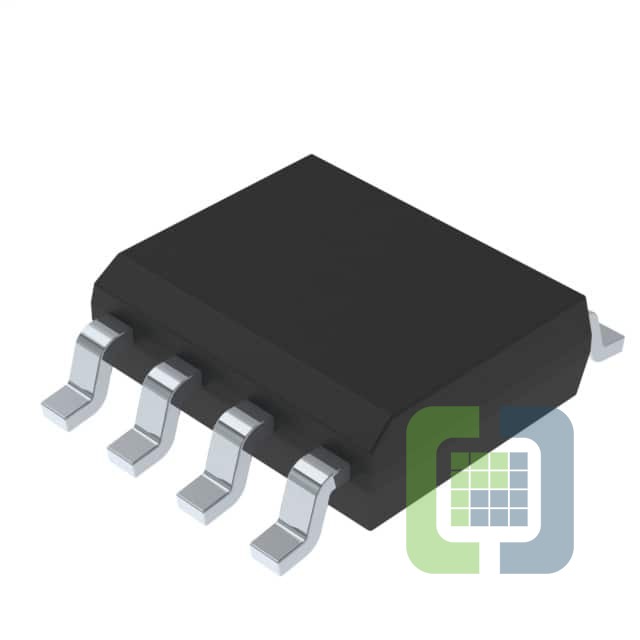

E-UC3844BD1
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BST FLYBK ISO 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet E-UC3844BD1 Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10V ~ 30V
- Frequency - Switching:Up to 500kHz
- Duty Cycle (Max):48%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
