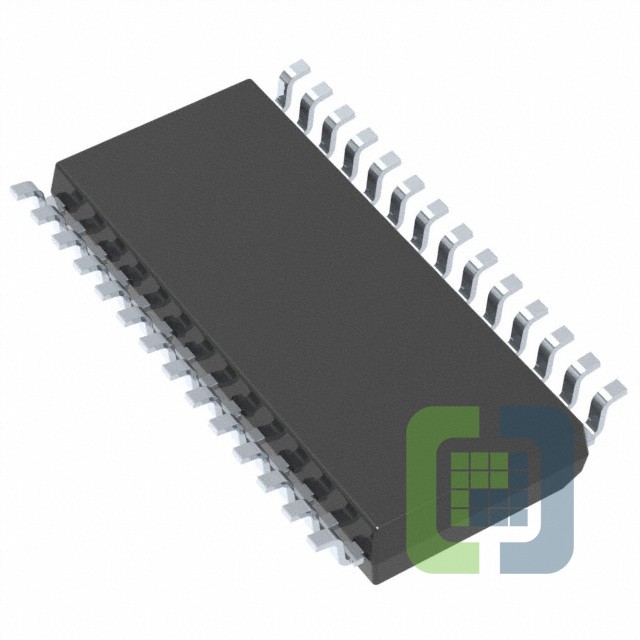

L6712D
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 28SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet L6712D Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):7.5V ~ 15V
- Frequency - Switching:150kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control, Phase Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:28-SO
