KA3524
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 16DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet KA3524 Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Buck, Flyback, Push-Pull
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 40V
- Frequency - Switching:350kHz
- Duty Cycle (Max):45%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole

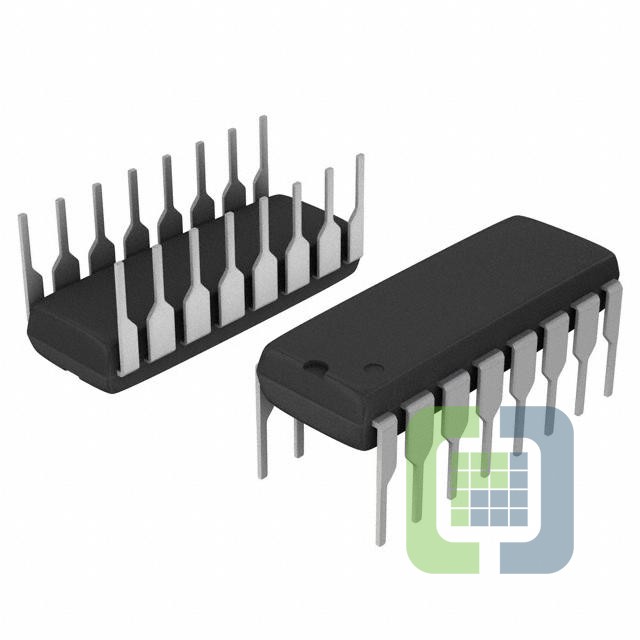

- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
