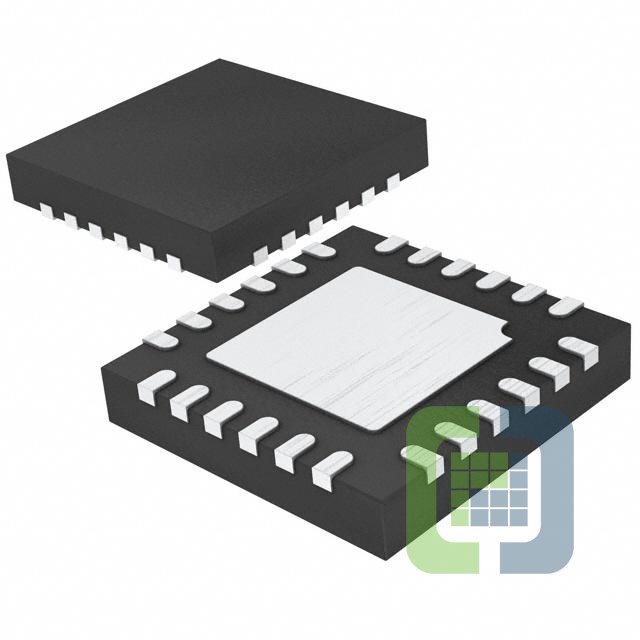

LTC3785IUF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC POWER MANAGEMENT
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3785IUF Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.7V ~ 10V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-WFQFN Exposed Pad
- Supplier Device Package:24-QFN (4x4)
