MAX17140AETL+TCGH

Technical Details

• Series:Quick-PWM™
• Package:Tape & Reel (TR)
• Part Status:Active
• Output Type:Transistor Driver
• Function:Step-Down
• Output Configuration:Positive
• Topology:Buck
• Number of Outputs:1
• Output Phases:1
• Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V

• Frequency - Switching:200kHz, 300kHz, 450kHz, 600kHz
• Duty Cycle (Max):100%
• Synchronous Rectifier:Yes
• Clock Sync:No
• Serial Interfaces:-
• Control Features:Current Limit, Enable, On Time Control, Power Good
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

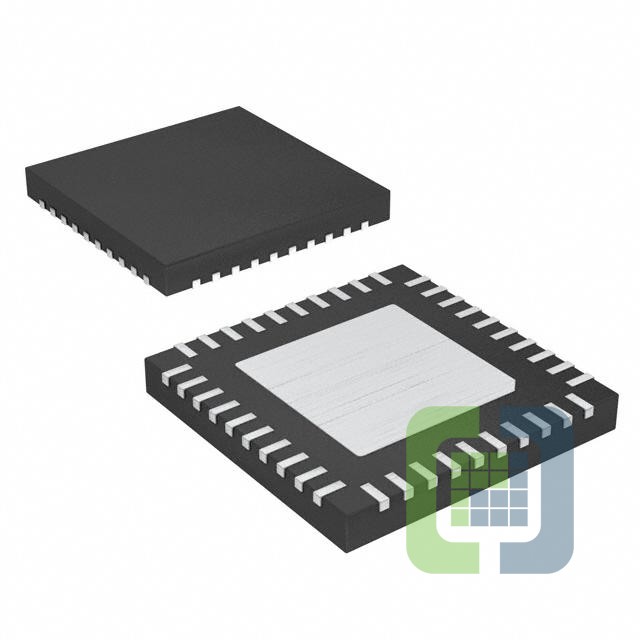

• Package / Case:40-WFQFN Exposed Pad
• Supplier Device Package:40-TQFN (5x5)
