- Lifecycle status Active
- RoHS RoHS Compliant

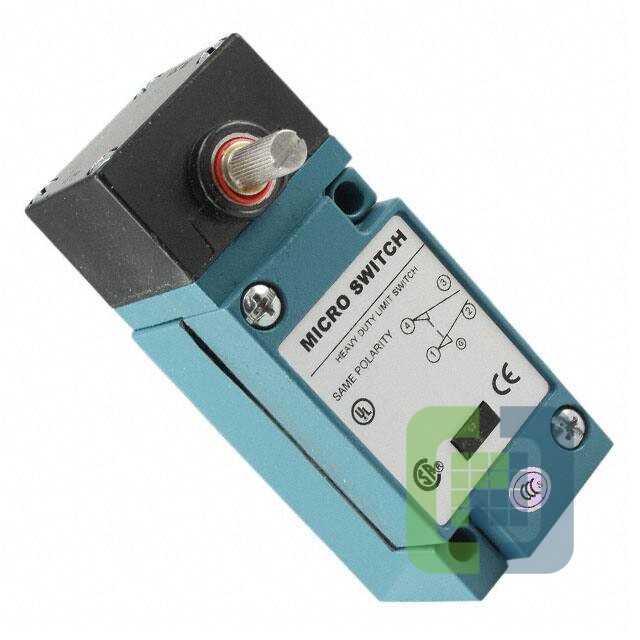

- DescriptionSWITCH SNAP ACTION SPDT 10A 120V
- CategorySnap Action, Limit Switches
- Datasheet LSH5A Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HDLS
- Package:Bulk
- Part Status:Active
- Circuit:SPDT (DB/DM)
- Switch Function:On-Mom
- Current Rating (Amps):10A (AC), 800mA (DC)
- Voltage Rating - AC:120 V
- Voltage Rating - DC:115 V
- Actuator Type:Side Rotary - No Lever
- Mounting Type:Chassis Mount
- Termination Style:Plug In
- Ingress Protection:-
- Features:Status Indicator
- Operating Force:19gfm
- Release Force:-
- Pretravel:9°
- Differential Travel:3°
- Overtravel:66°
- Operating Temperature:-1°C ~ 121°C
