- Lifecycle status Active
- RoHS RoHS Compliant

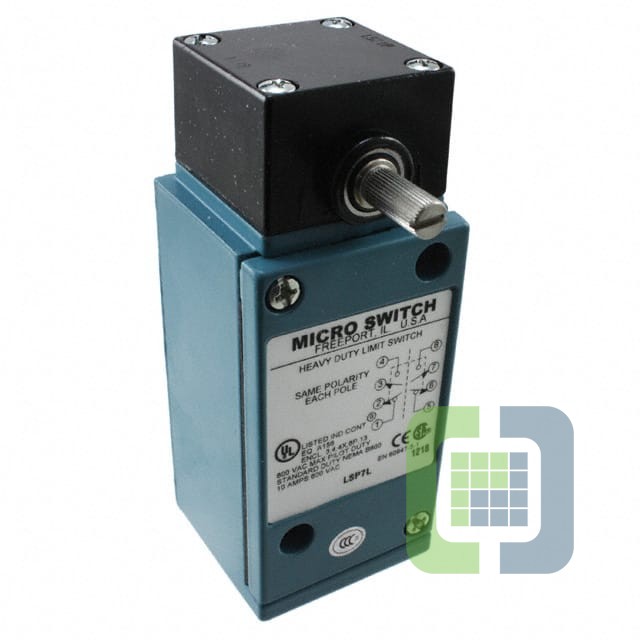

- DescriptionSWITCH SNAP ACTION DPDT 10A 120V
- CategorySnap Action, Limit Switches
- Datasheet LSP7L Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$146.02
- 3$146.02
Quote It
Technical Details
- Series:HDLS
- Package:Bulk
- Part Status:Active
- Circuit:DPDT (DB/DM)
- Switch Function:On-Mom
- Current Rating (Amps):10A (AC), 800mA (DC)
- Voltage Rating - AC:120 V
- Voltage Rating - DC:115 V
- Actuator Type:Side Rotary - No Lever
- Mounting Type:Chassis Mount
- Termination Style:Screw Terminal
- Ingress Protection:-
- Features:-
- Operating Force:46gfm
- Release Force:-
- Pretravel:9°
- Differential Travel:4°
- Overtravel:66°
- Operating Temperature:-12°C ~ 121°C
