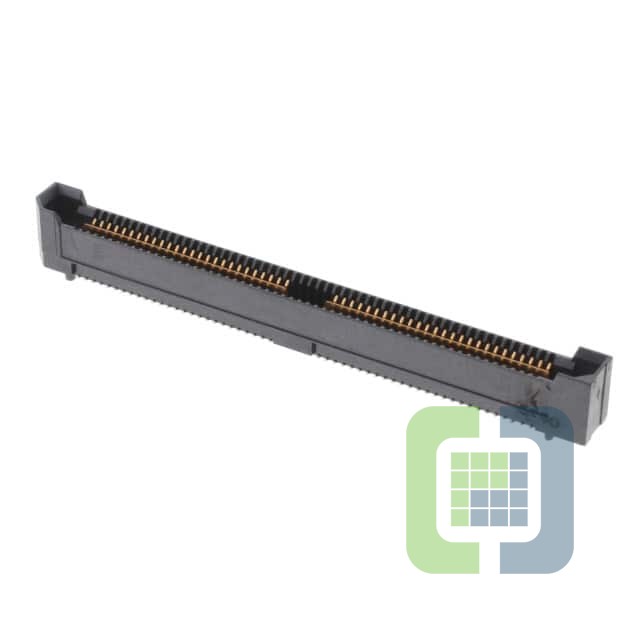

QRF8-052-05.0-L-D-A-GP
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN ARRAY RCPT 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QRF8-052-05.0-L-D-A-GP Datasheet
-
ECAD Model
- Share
In Stock: 454
Can ship immediately
Pricing:
- 1$17.03
- 10$16.03201
- 25$15.58091
- 51$14.52914
- 102$14.02798
- 255$13.02604
- 510$12.77551
- 1,020$12.27451
Quote It
Technical Details
- Series:QRate® QRF8
- Package:Tray
- Part Status:Active
- Connector Type:Array, Female Sockets
- Number of Positions:104
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 10mm, 12mm
- Height Above Board:0.197" (5.00mm)
