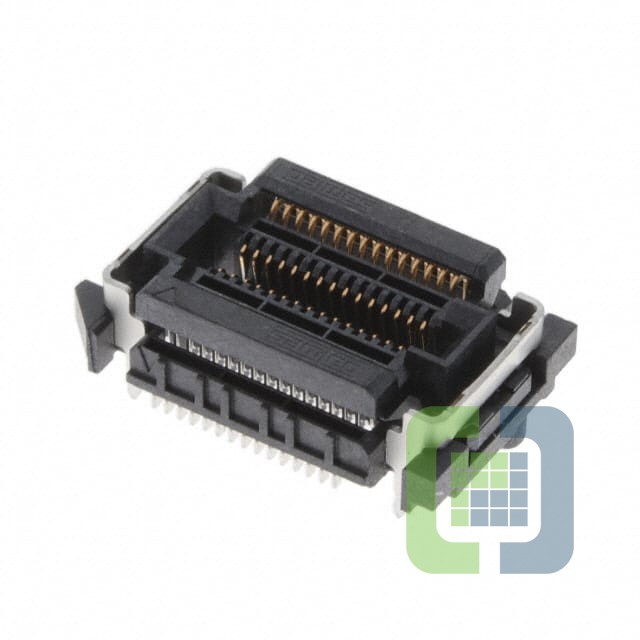

FS5-15-04.0-L-DV-TH-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 30POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FS5-15-04.0-L-DV-TH-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 1,046
Can ship immediately
Pricing:
- 1$5.58
- 350$5.58
- 700$5.208
- 1,050$4.836
- 1,750$4.743
- 2,450$4.65
Quote It
Technical Details
- Series:FS5
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:30
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm, 7mm
- Height Above Board:0.173" (4.40mm)
