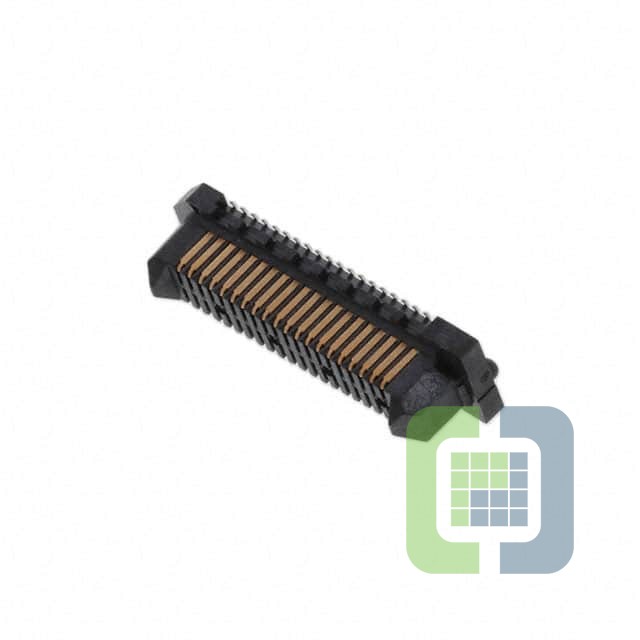

ERM8-020-02.0-L-DV-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-020-02.0-L-DV-TR Datasheet
-
ECAD Model
- Share
In Stock: 881
Can ship immediately
Pricing:
- 1$5
- 350$5
- 700$4.66667
- 1,050$4.33333
- 1,750$4.25
- 2,450$4.16667
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 9mm, 12mm
- Height Above Board:0.235" (5.97mm)
