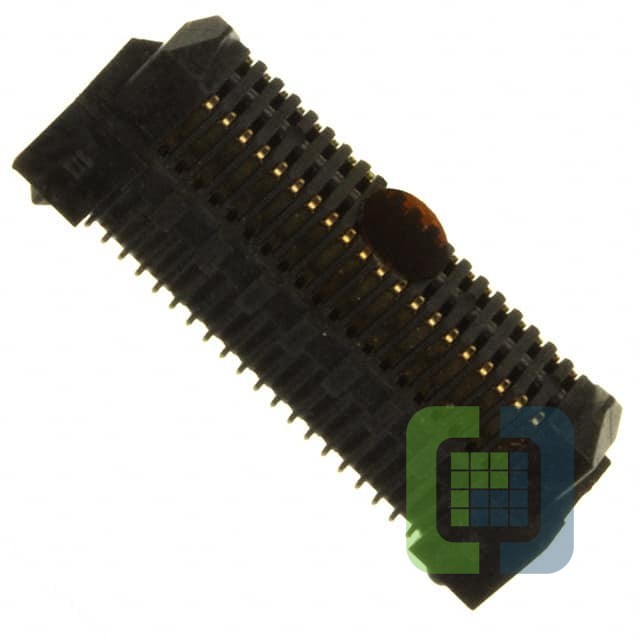

ERM8-020-05.0-L-DV-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-020-05.0-L-DV-TR Datasheet
-
ECAD Model
- Share
In Stock: 604
Can ship immediately
Pricing:
- 1$5.23
- 250$5.23
- 500$4.88133
- 750$4.70702
- 1,250$4.53267
- 1,750$4.4455
- 2,500$4.35833
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 12mm, 15mm
- Height Above Board:0.351" (8.91mm)
