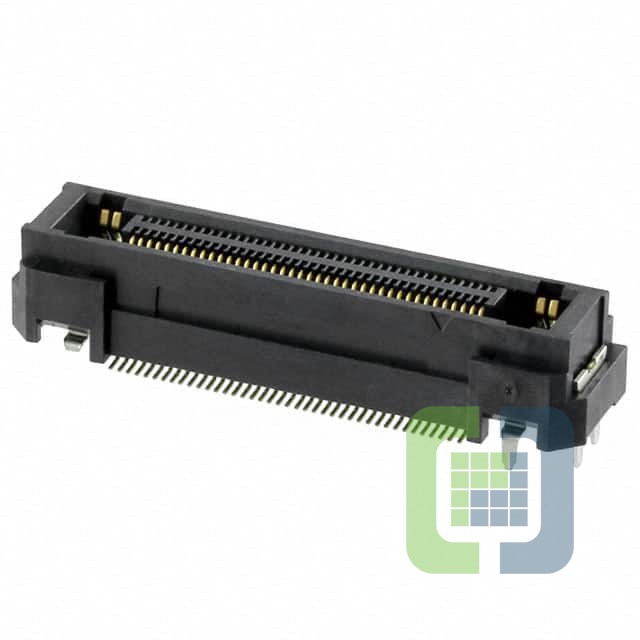

FX23-80S-0.5SV
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX23-80S-0.5SV Datasheet
-
ECAD Model
- Share
In Stock: 2,456
Can ship immediately
Pricing:
- 1$4.07
- 10$3.9021
- 25$3.57692
- 72$3.4144
- 144$3.25175
- 288$2.84528
Quote It
Technical Details
- Series:FunctionMax™ FX23
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:84 (80 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:15mm, 20mm
- Height Above Board:0.268" (6.80mm)
