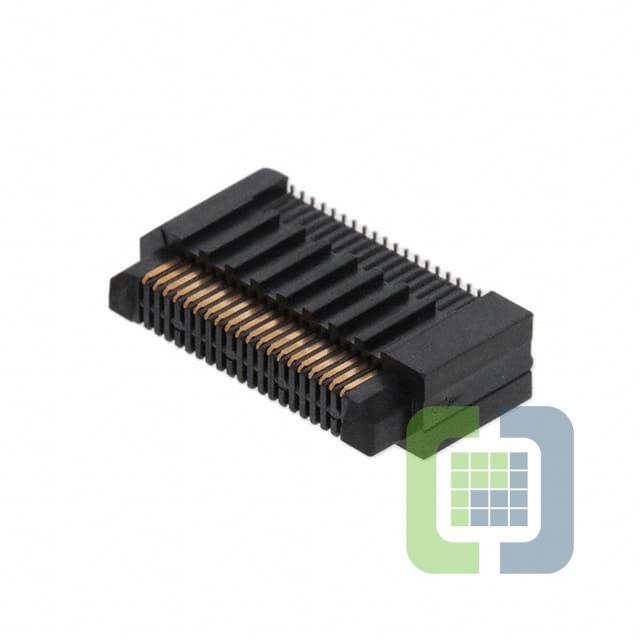

ERM8-020-09.0-L-DV-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-020-09.0-L-DV-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$5.6
- 125$3.808
- 250$3.36
- 625$3.136
- 875$3.024
- 1,250$2.912
- 3,125$2.8
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:14mm, 16mm, 19mm
- Height Above Board:0.508" (12.91mm)
