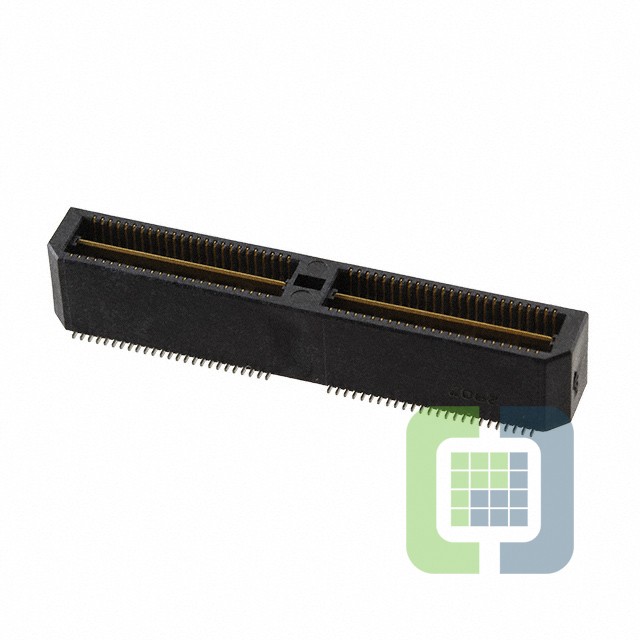

QTS-050-01-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTS-050-01-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 340
Can ship immediately
Pricing:
- 1$11.31
- 10$10.46175
- 25$9.89625
- 50$9.3873
- 100$8.76525
- 250$7.63425
- 500$7.3515
- 1,000$7.06875
Quote It
Technical Details
- Series:Q Strip® QTS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:100
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.160" (4.06mm)
