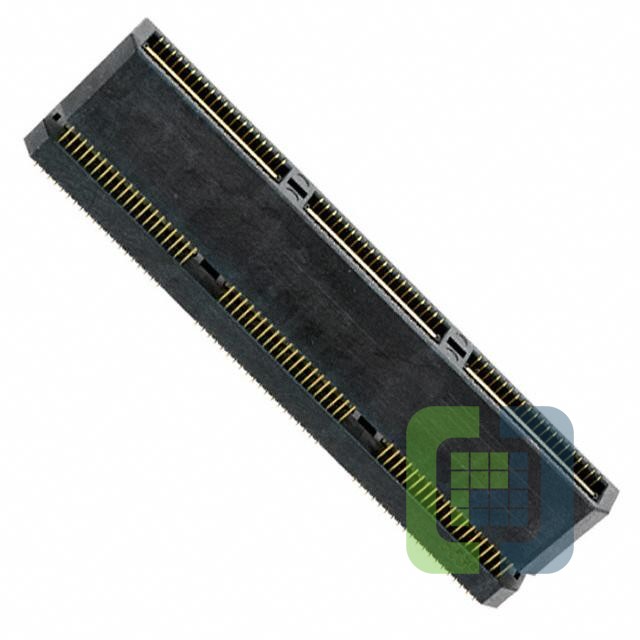

QTE-060-04-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-060-04-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 367
Can ship immediately
Pricing:
- 1$19.75
- 20$19.09166
- 40$18.43334
- 60$17.775
- 100$17.11666
- 260$16.7875
- 500$16.45834
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:16mm
- Height Above Board:0.600" (15.24mm)
