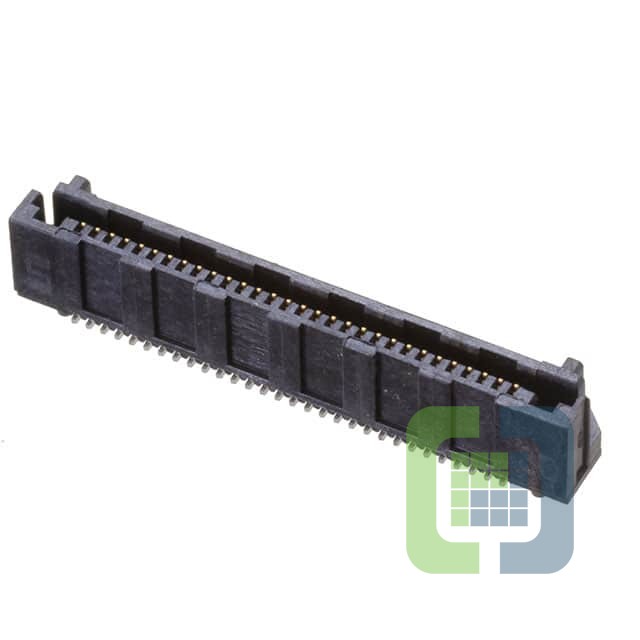

LSS-130-01-F-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 60POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-130-01-F-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 443
Can ship immediately
Pricing:
- 1$4.49
- 10$3.79571
- 25$3.62318
- 50$3.27811
- 100$2.93305
- 250$2.58799
- 500$2.41546
- 1,000$2.24292
- 2,500$2.15665
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tube
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:60
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:6mm, 7mm, 9mm
- Height Above Board:0.169" (4.30mm)
