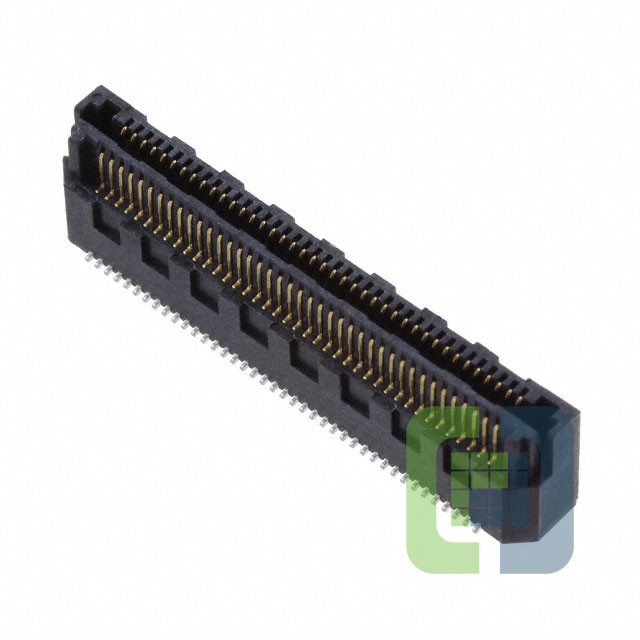

LSS-140-02-L-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-140-02-L-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 309
Can ship immediately
Pricing:
- 1$6.52
- 10$5.95614
- 25$5.67251
- 50$5.10526
- 100$4.53801
- 250$4.1126
- 500$3.82895
- 1,000$3.61623
- 2,500$3.47441
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tube
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:80
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:9mm, 10mm, 12mm
- Height Above Board:0.287" (7.30mm)
