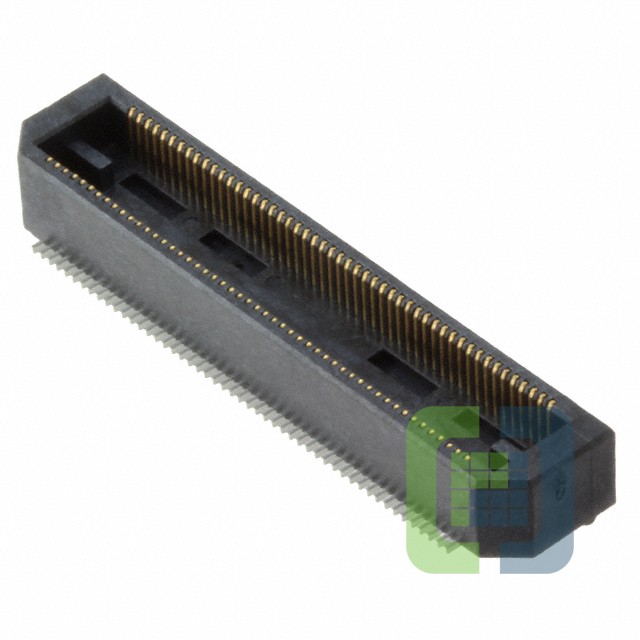

BTH-050-01-L-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-050-01-L-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 379
Can ship immediately
Pricing:
- 1$8.36
- 10$7.63686
- 25$7.2732
- 50$6.54588
- 100$5.81856
- 250$5.27307
- 500$4.90941
- 1,000$4.63667
Quote It
Technical Details
- Series:BTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
