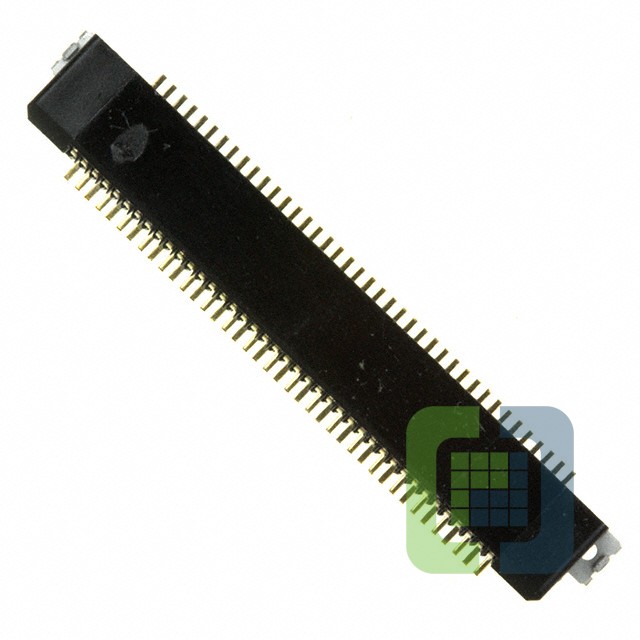

WR-80P-HF-HD-A1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 80POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-80P-HF-HD-A1E Datasheet
-
ECAD Model
- Share
In Stock: 1,403
Can ship immediately
Pricing:
- 1$9.11
- 10$8.71005
- 25$7.91823
- 50$7.52231
- 100$7.32436
- 250$6.53254
- 500$6.13663
- 1,000$5.42398
Quote It
Technical Details
- Series:WR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.185" (4.70mm)
