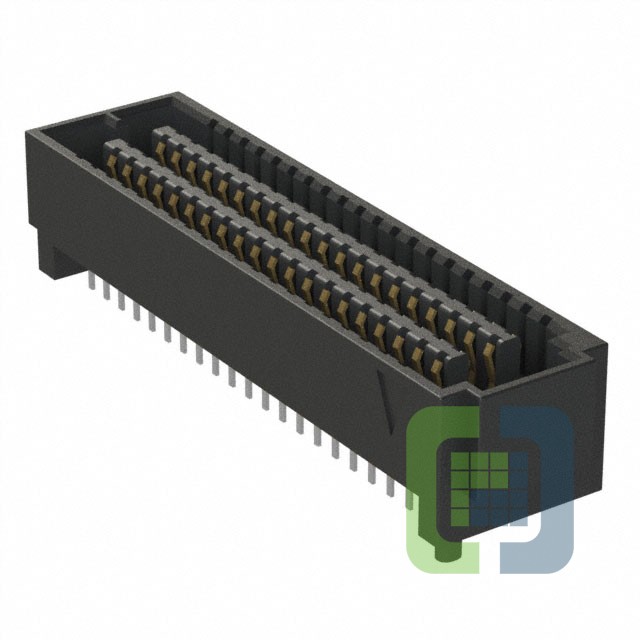

SEAF-20-05.0-S-05-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 100P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF-20-05.0-S-05-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 522
Can ship immediately
Pricing:
- 1$13.33
- 375$7.878
- 750$7.575
- 1,125$7.4235
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:100
- Pitch:0.050" (1.27mm)
- Number of Rows:5
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
- Height Above Board:0.199" (5.05mm)
