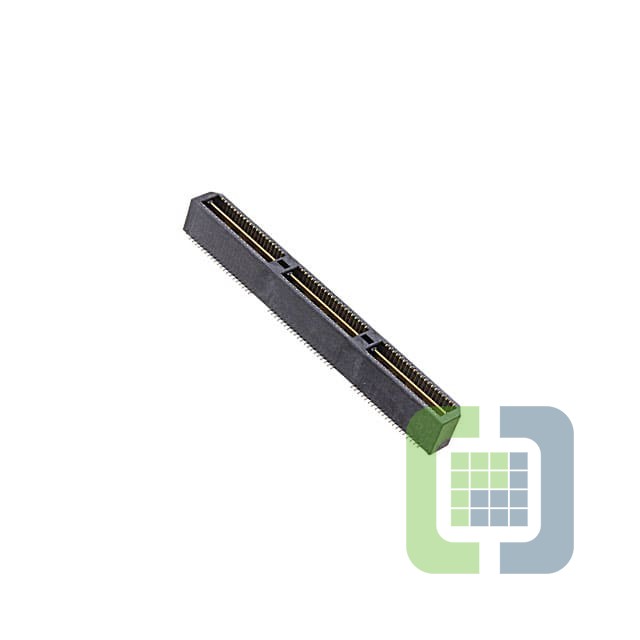

QTE-060-02-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-060-02-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 305
Can ship immediately
Pricing:
- 1$11.17
- 10$10.33225
- 25$9.77398
- 50$9.2711
- 100$8.65675
- 250$7.53975
- 500$7.2605
- 1,000$6.98125
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:8mm
- Height Above Board:0.286" (7.26mm)
