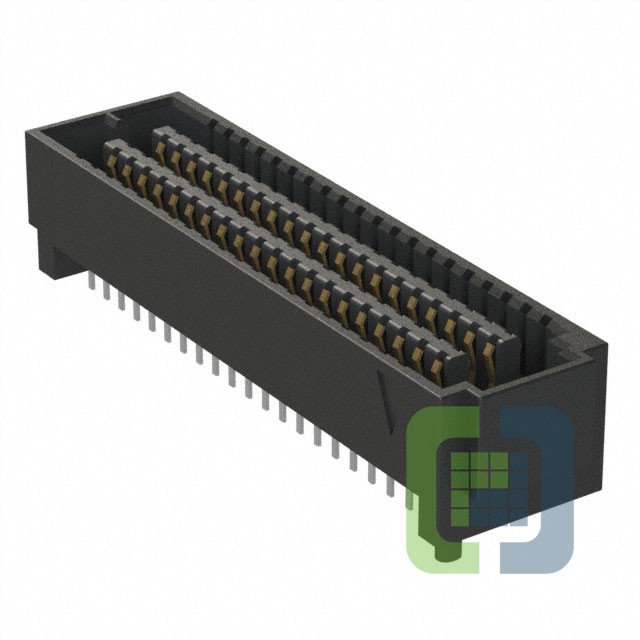

SEAF-20-06.5-S-05-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 100P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF-20-06.5-S-05-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 396
Can ship immediately
Pricing:
- 1$14.19
- 200$9.03
- 400$8.385
- 600$8.22375
- 1,000$7.90125
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:100
- Pitch:0.050" (1.27mm)
- Number of Rows:5
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
- Height Above Board:0.258" (6.55mm)
