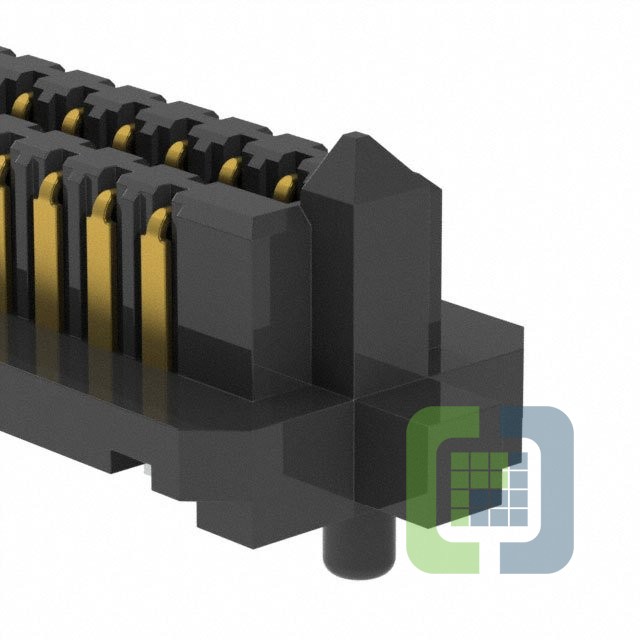

SEAM-20-09.0-S-04-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-20-09.0-S-04-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 404
Can ship immediately
Pricing:
- 1$17.43
- 125$10.79
- 250$10.58252
- 625$10.37501
- 875$10.1675
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:14mm, 15mm, 15.5mm, 16.5mm
- Height Above Board:0.457" (11.60mm)
