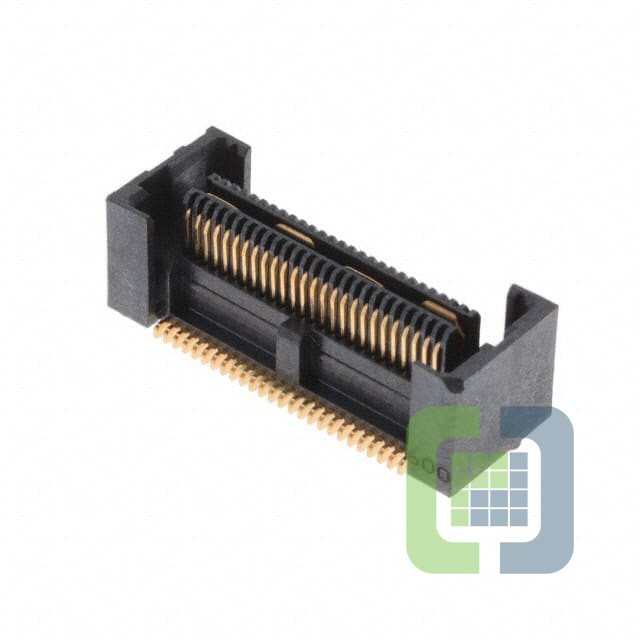

QFS-026-04.25-H-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 52POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-026-04.25-H-D-A Datasheet
-
ECAD Model
- Share
In Stock: 8,061
Can ship immediately
Pricing:
- 1$16.04
- 10$15.09775
- 25$14.67292
- 50$13.68247
- 100$13.21054
- 250$12.26692
- 500$12.03103
- 1,000$11.55921
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:52
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:10mm, 11mm, 14mm
- Height Above Board:0.278" (7.06mm)
