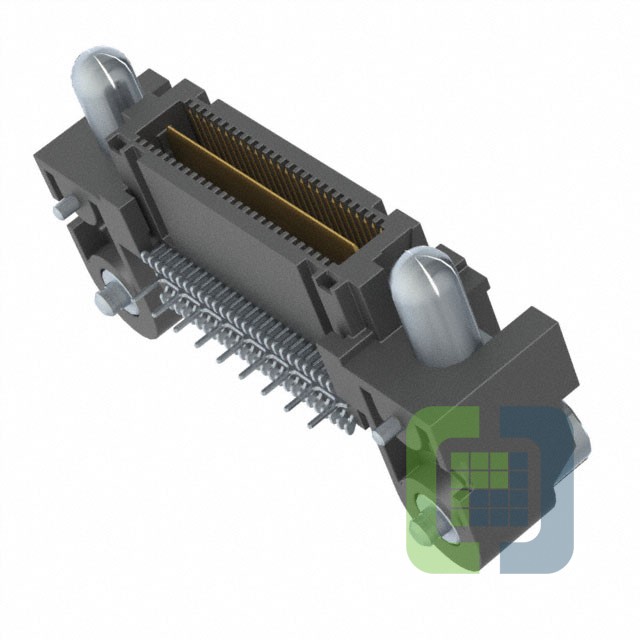

QMS-026-01-SL-D-RA-MG
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 52POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-026-01-SL-D-RA-MG Datasheet
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$17.52
- 10$16.92962
- 25$16.34513
- 50$15.76152
- 100$15.17762
- 250$14.88576
- 500$14.59387
- 1,000$14.01011
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:52
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle; Through Hole
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.320" (8.12mm)
