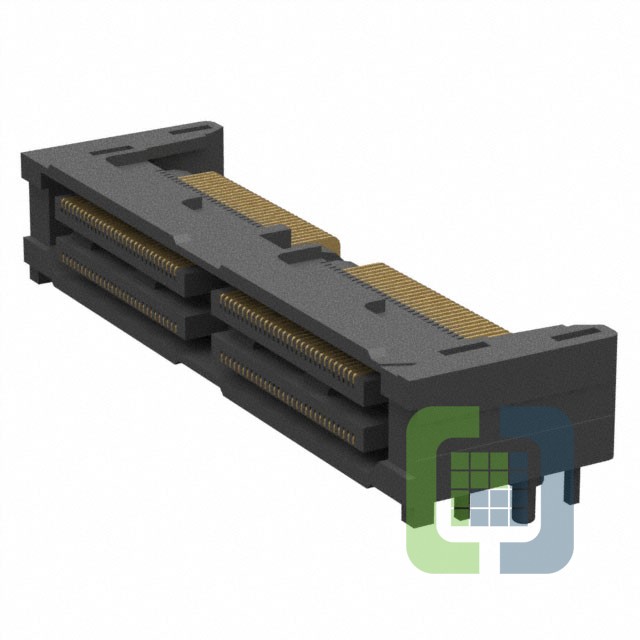

QSH-060-01-L-D-RA-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-060-01-L-D-RA-K Datasheet
-
ECAD Model
- Share
In Stock: 414
Can ship immediately
Pricing:
- 1$21.47
- 10$20.70129
- 25$19.9342
- 50$19.55065
- 100$19.16724
- 250$18.78388
- 500$18.40055
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.333" (8.45mm)
