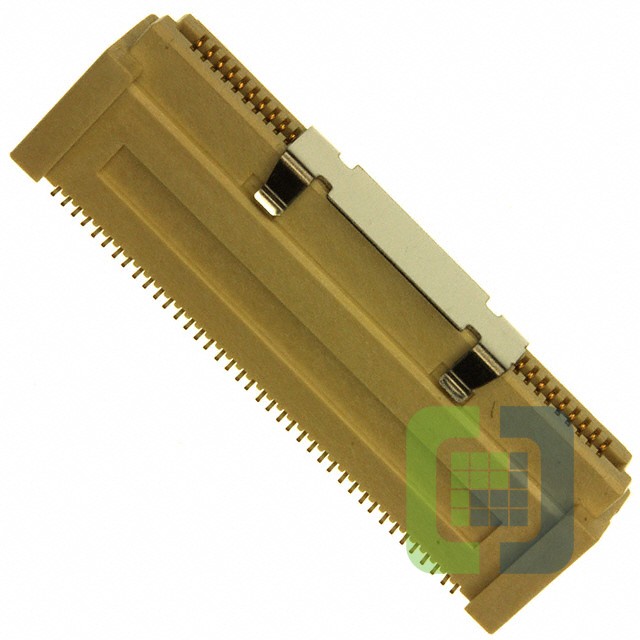

5084616-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5084616-3 Datasheet
-
ECAD Model
- Share
In Stock: 546
Can ship immediately
Pricing:
- 1$6.82
- 200$5.34355
- 400$4.78108
- 600$4.49983
- 1,000$3.93736
- 2,000$3.85299
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:13mm, 14mm, 15mm, 16mm
- Height Above Board:0.463" (11.75mm)
