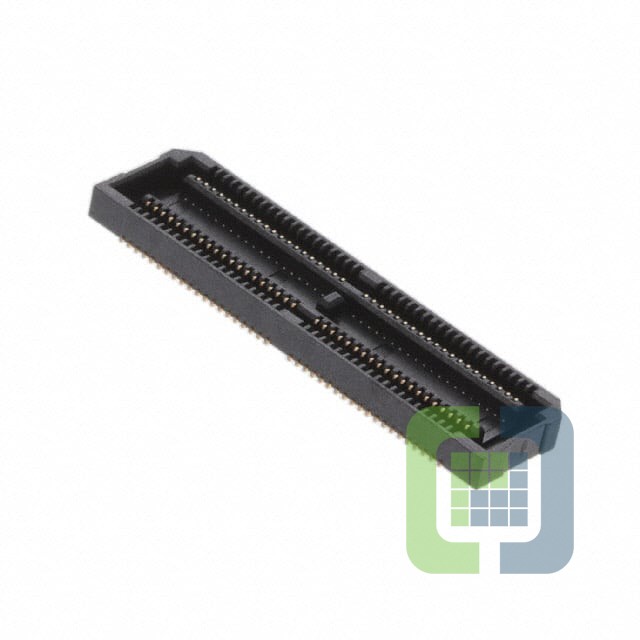

LSH-040-01-G-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSH-040-01-G-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 1,247
Can ship immediately
Pricing:
- 1$11.66
- 125$7.42
- 250$6.89
- 625$6.7575
- 875$6.62501
- 1,250$6.4925
Quote It
Technical Details
- Series:LSH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2.31mm
- Height Above Board:0.075" (1.90mm)
