0529011274
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

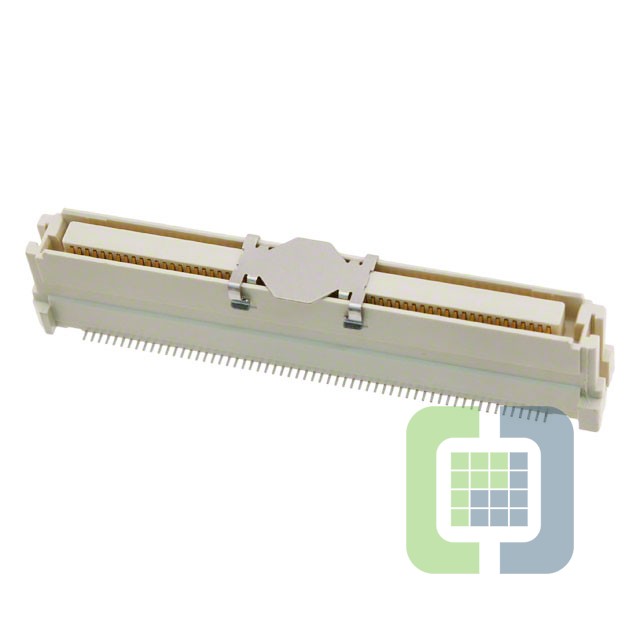

- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0529011274 Datasheet
-
ECAD Model
- Share
In Stock: 971
Can ship immediately
Pricing:
- 1$11.17
- 440$7.87075
- 880$6.95673
- 1,320$6.75361
Quote It
Technical Details
- Series:SlimStack 52901
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:120
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm, 12mm, 13mm, 14mm, 15mm, 16mm
- Height Above Board:0.394" (10.00mm)
