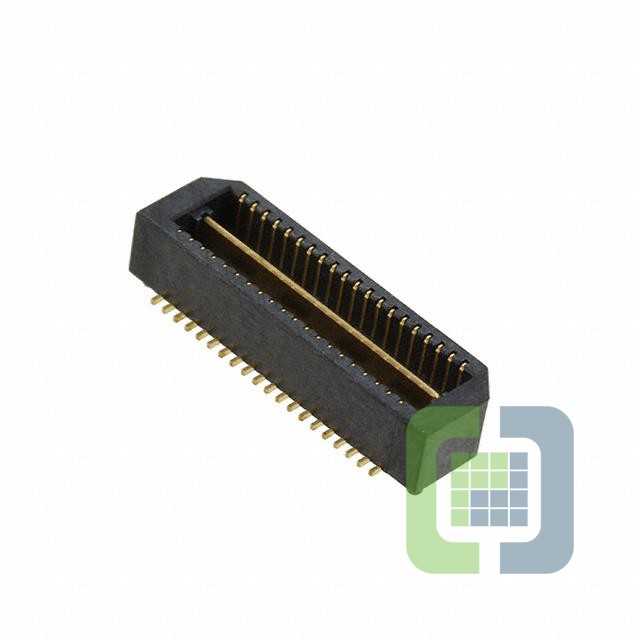

1658013-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658013-1 Datasheet
-
ECAD Model
- Share
In Stock: 505
Can ship immediately
Pricing:
- 1$8.81
- 10$8.46049
- 25$7.75588
- 96$7.40305
- 192$7.22674
- 288$6.52171
- 576$6.16918
- 1,056$5.53465
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.168" (4.27mm)
